This document describes the use of filters in Apache.


Filtering in Apache 2

The Filter Chain is available in Apache 2.0 and higher, and enables applications to process incoming and outgoing data in a highly flexible and configurable manner, regardless of where the data comes from. We can pre-process incoming data, and post-process outgoing data, at will. This is basically independent of the traditional request processing phases.

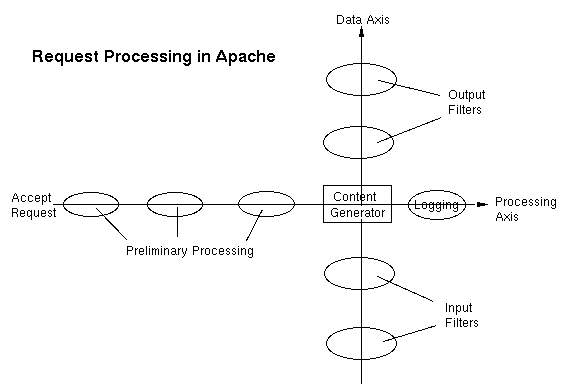

Filters can be chained, in a Data Axis orthogonal to request processing

Some examples of filtering in the standard Apache distribution are:

Apache also uses a number of filters internally to perform functions like chunking and byte-range handling.

A wider range of applications are implemented by third-party filter modules available from modules.apache.org and elsewhere. A few of these are:


Smart Filtering

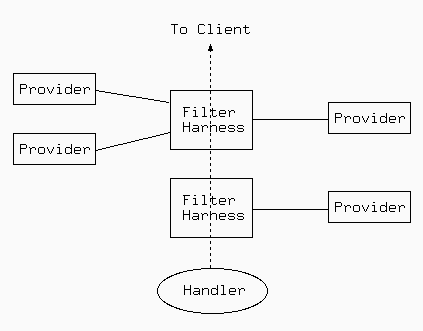

Smart filtering applies different filter providers according to the state of request processing

mod_filter, included in Apache 2.1 and later, enables the filter chain to be configured dynamically at run time. So for example you can set up a proxy to rewrite HTML with an HTML filter and JPEG images with a completely separate filter, despite the proxy having no prior information about what the origin server will send. This works by using a filter harness, that dispatches to different providers according to the actual contents at runtime. Any filter may be either inserted directly in the chain and run unconditionally, or used as a provider and inserted dynamically. For example,


Using Filters

There are two ways to use filtering: Simple and Dynamic. In general, you should use one or the other; mixing them can have unexpected consequences (although simple Input filtering can be mixed freely with either simple or dynamic Output filtering).

The Simple Way is the only way to configure input filters, and is sufficient for output filters where you need a static filter chain. Relevant directives are SetInputFilter, SetOutputFilter, AddInputFilter, AddOutputFilter, RemoveInputFilter, and RemoveOutputFilter.

The Dynamic Way enables both static and flexible, dynamic configuration of output filters, as discussed in the mod_filter page. Relevant directives are FilterChain, FilterDeclare, and FilterProvider.

One further directive AddOutputFilterByType is still supported, but may be problematic and is now deprecated. Use dynamic configuration instead.
